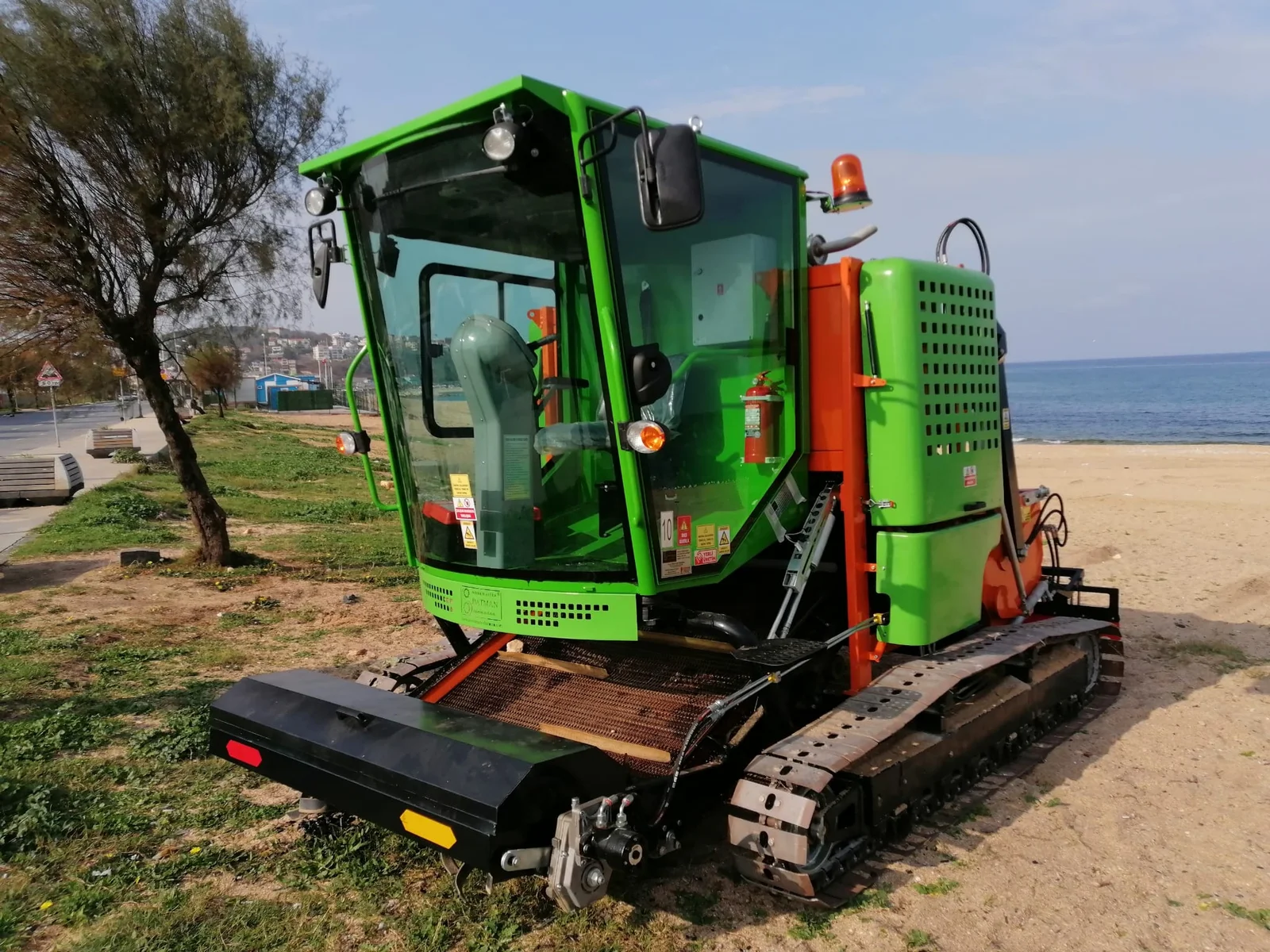

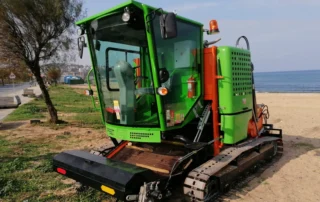

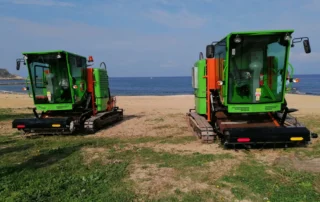

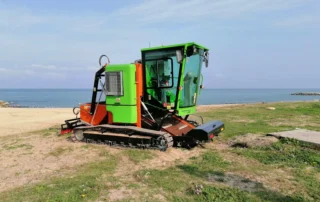

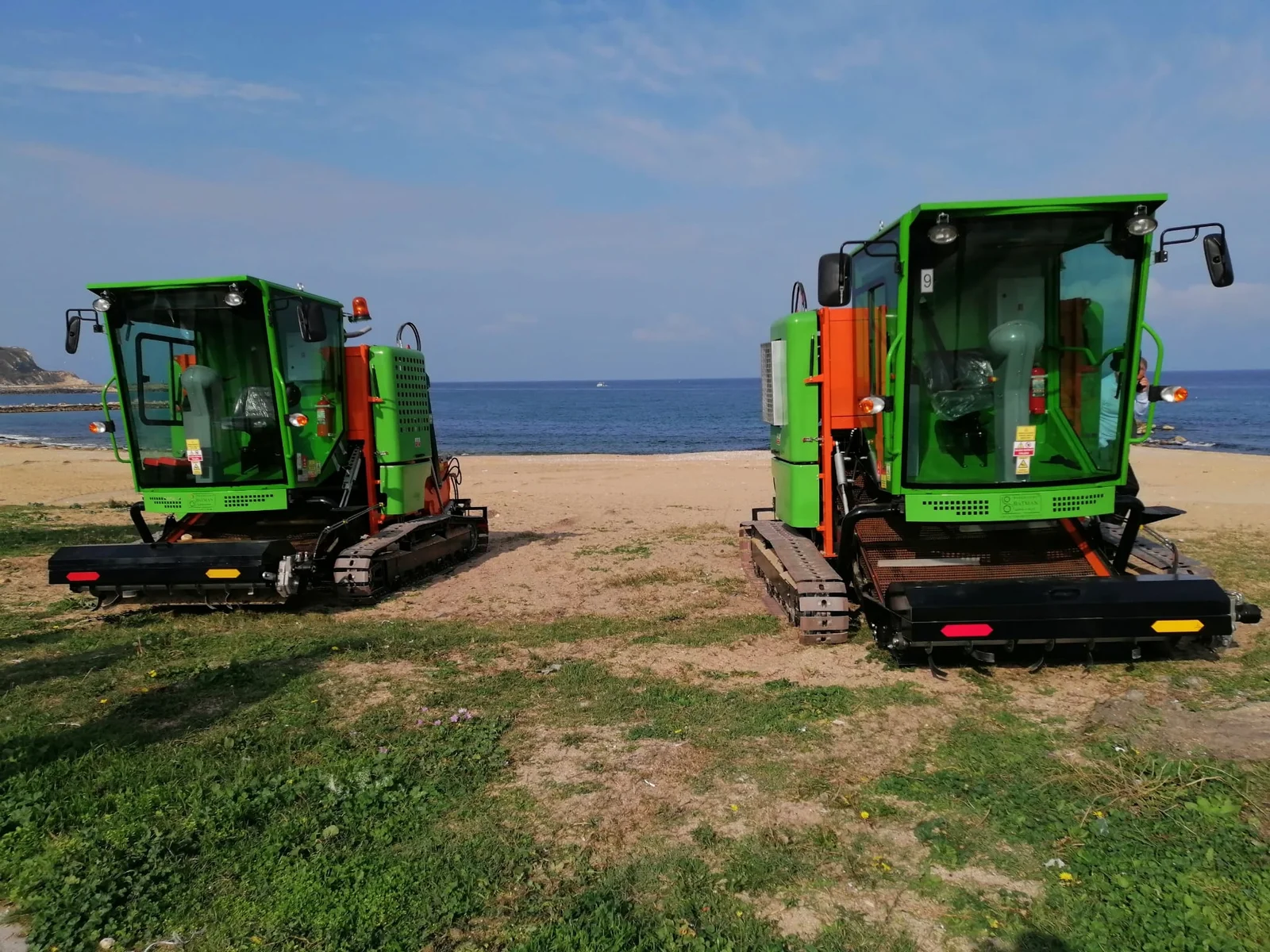

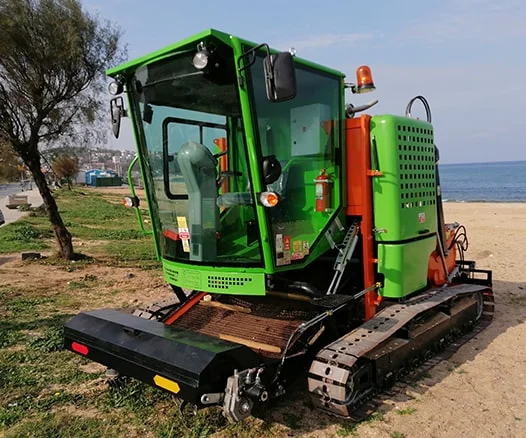

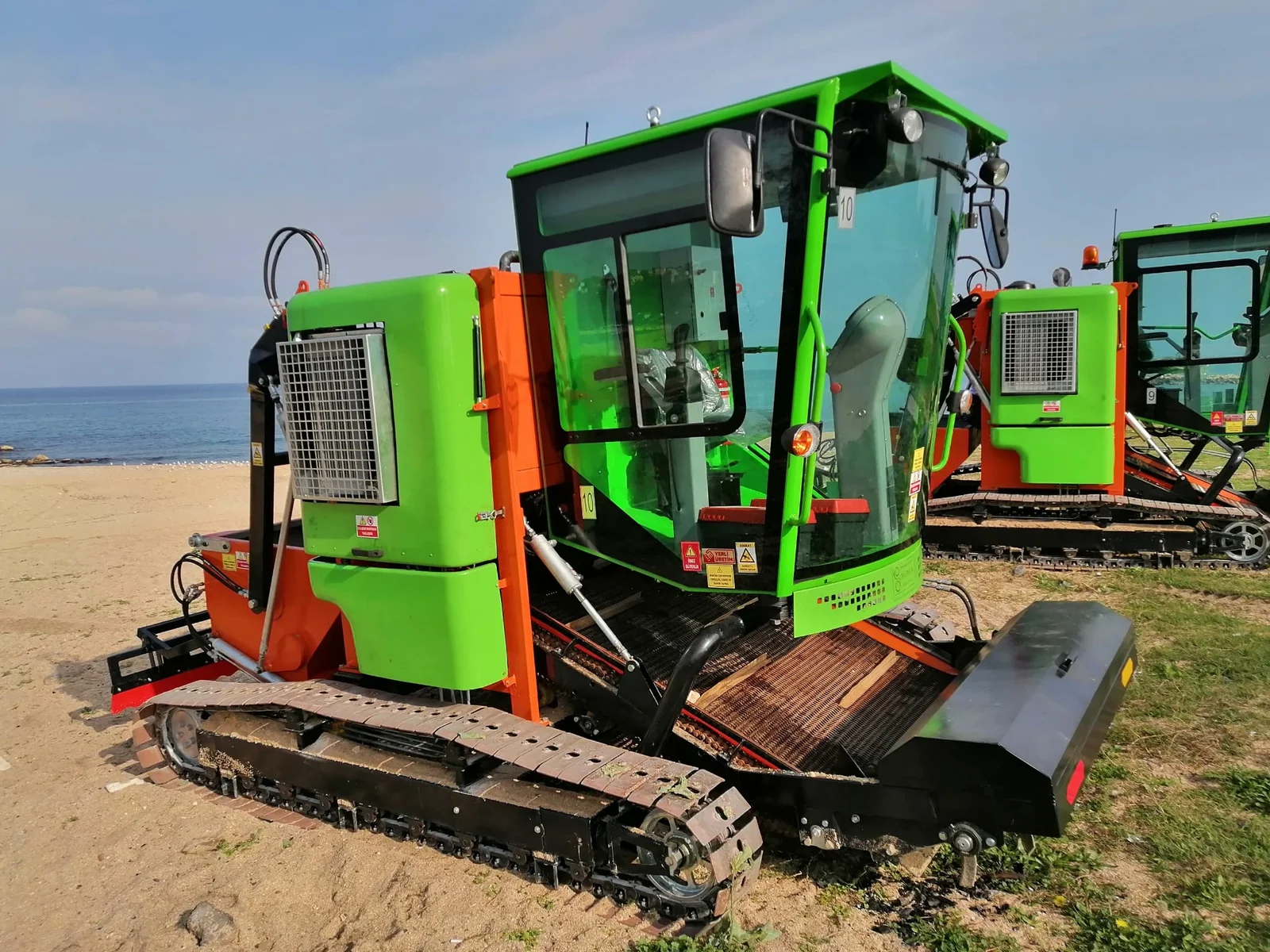

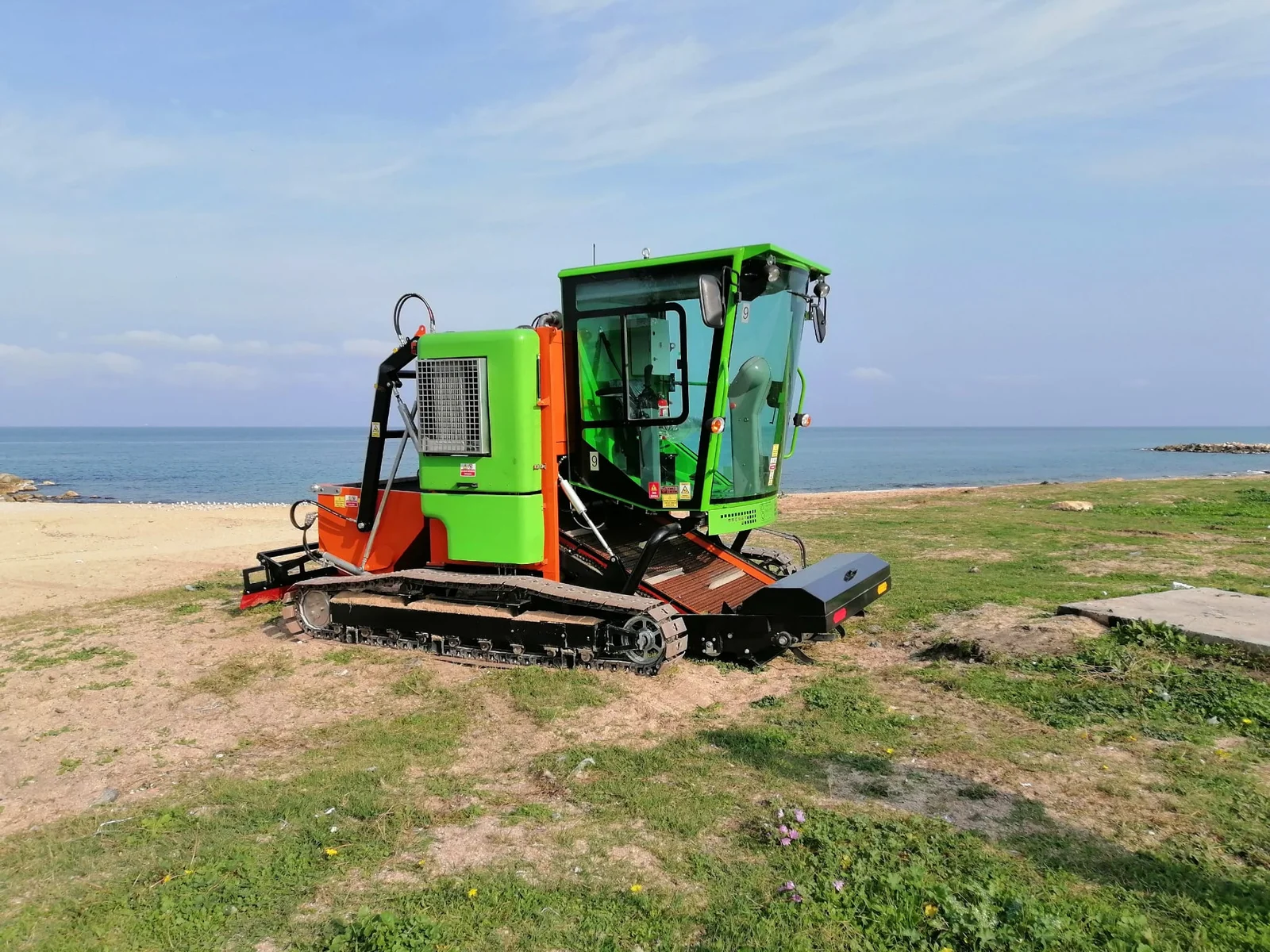

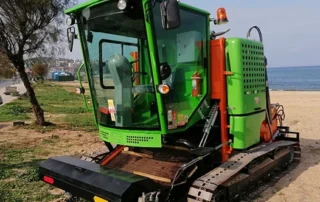

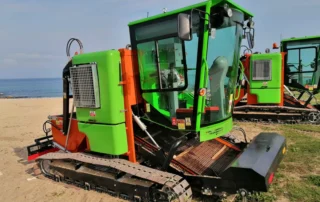

BM700 is a professional beach cleaning machine developed to operate especially on soft sandy surfaces, with a tracked drive system and a self-propelled design. With a 160 cm cleaning width, adjustable cleaning depth and a theoretical cleaning capacity of up to 12,000 m² per hour, it helps with the regular maintenance of large beach areas.

BM700 works by separating foreign materials from the sand and returning the cleaned sand to the beach surface. The collection system at the front of the machine collects the sand and foreign materials, while the belt-screen system screens the sand. The clean sand is returned to the ground, while the separated waste is collected in the machine’s waste hopper.

The tracked drive system allows more controlled movement, especially on soft sand. Thanks to the hydrostatic drive system and hydraulic cleaning mechanisms, the operator can control the machine’s movement and cleaning operations from inside the cabin.

Laser-Sensor Cleaning Depth Control

The laser-sensor cleaning depth control system on the BM700 helps adjust the operating depth of the cleaning mechanism. The user manual states that the depth control system can be adjusted by the operator.

Operator Comfort and Control

The BM700 operator cabin includes air conditioning and a rear-view camera. The operator can control the machine’s movement, cleaning system, front boom, and the lifting and emptying functions of the waste hopper via the control panel.

The manual also states that the operator can monitor both the cleaning process and the fill level of the waste hopper using the camera and the viewing areas beneath the cabin.

Quote Form

How Does BM1700 Work?

**1. Collecting Sand and Waste**

The front collection system moves into the sand surface and takes the sand and foreign materials into the machine.

**2. Screening the Sand**

The belt-screen system separates the sand from foreign materials.

**3. Returning Clean Sand to the Beach**

The screened sand is returned to the beach surface. The levelling system at the rear of the machine smooths the cleaned sand surface. In the user manual, this system is described as a “liper” and helps level and smooth the surface.

**4. Storing and Emptying Waste**

The separated foreign materials are collected in the 1.2 m³ waste hopper. When full, the hopper can be raised by the hydraulic system and emptied into a suitable waste area or container.

Technical Specifications

| **Machine Dimensions** | 420 × 253 × 250 cm |
| ———————– | ———————————– |
| **Engine Power** | 49,8 kW (66,8 HP) Diesel |
| **Cleaning Width** | 160 cm |
| **Cleaning Speed** | 0–50 m/min\* |
| **Waste Hopper Capacity** | 1,2 m³ |
| **Maximum Travel Speed** | 12 km/h |
| **Drive System** | Hydrostatic |
| **Cleaning System** | Hydraulic screening, collection and emptying |

| **Weight** | 2.780 kg |
| ———————— | —————————- |
| **Fuel Tank** | 58 litres – Diesel |
| **Cleaning Depth** | 15 / 20 / 25 cm |
| **Cleaning Capacity** | 0–12.000 m²/hour\* |
| **Emptying Height** | 225 cm |
| **Tyre Size** | 400/60 – 15.5 |
| **Electrical System** | 12 DCV |
| **Operator Cabin** | Air conditioning and rear-view camera |

Frequently Asked Questions

BM700 takes sand and foreign materials into the machine through its collection system. The belt-screen system separates the sand from foreign materials. The cleaned sand is returned to the beach surface, while the separated waste is collected in the machine’s waste hopper.

Thanks to its tracked drive system, the BM700 has been developed especially for soft sandy beach conditions where wheeled machines may have difficulty moving. The manufacturer’s operating instructions should be followed regarding the slope and ground conditions of the area where the machine will be used.

The stated maximum cleaning capacity of the machine can reach up to 12,000 m² per hour. Actual capacity may vary depending on the type of sand, beach conditions, cleaning depth, waste density and operating speed.

The BM700 has a cleaning width of 160 cm.

The machine can operate at cleaning depths of 15, 20 and 25 cm. The cleaning depth can be adjusted according to beach and sand conditions.

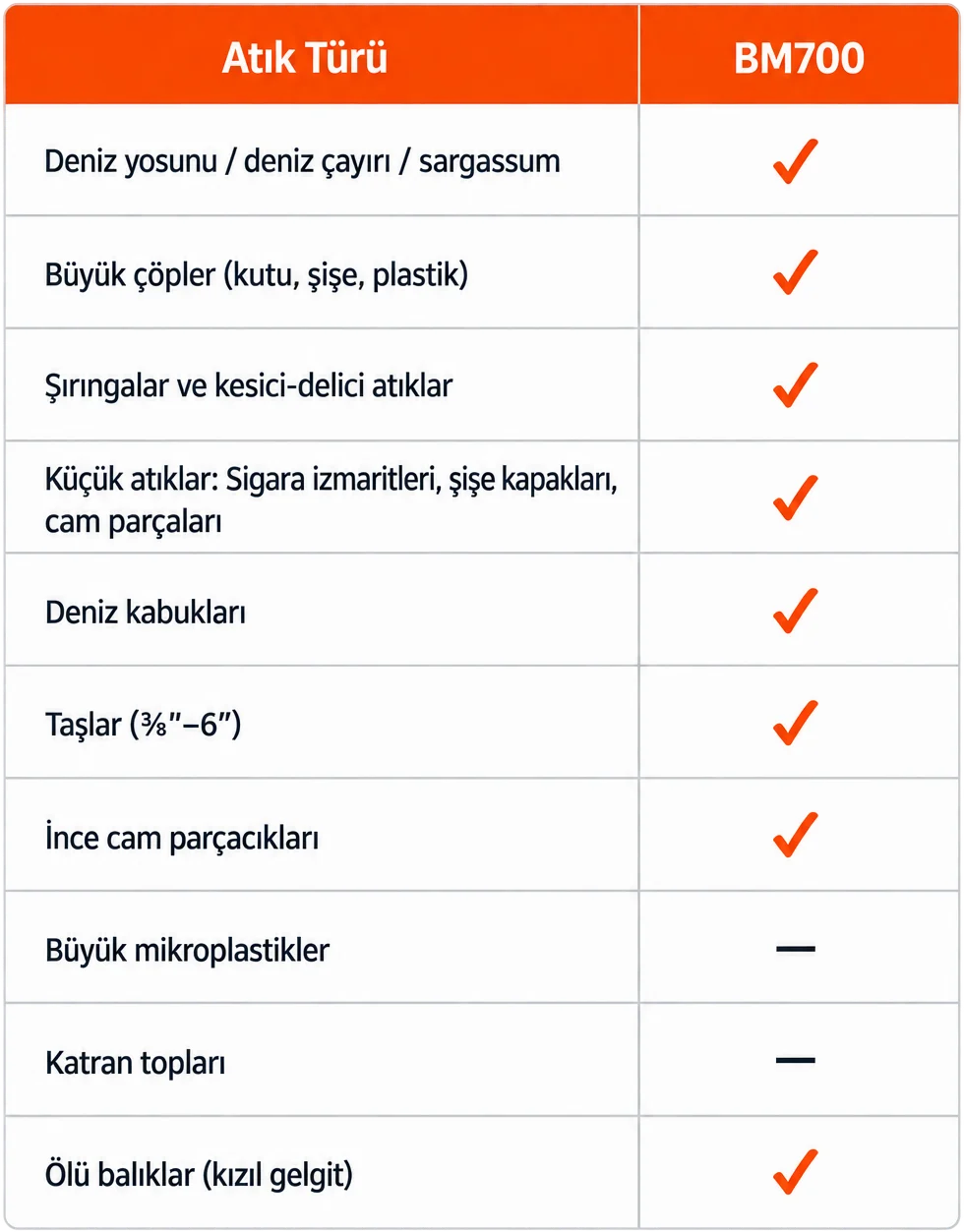

The BM700 can be used to separate stones, seashells, mussel shells, seaweed, branches and pieces of wood, glass and metal pieces, packaging waste, PET bottles, cigarette butts and various foreign materials found in the sand.

Foreign materials are collected in the machine’s 1.2 m³ waste hopper. The hopper can be raised by the hydraulic system and emptied into a suitable waste collection area. The stated emptying height of the system is 225 cm.

Yes. The BM700 is a self-propelled beach cleaning machine. The catalogue states an engine power of 49.8 kW (66.8 HP), diesel. The user manual lists the engine type as Kubota V-3600.

The stated maximum travel speed of the machine is 12 km/h, while its operating speed during cleaning ranges from 0–50 metres/minute depending on beach conditions.

The machine should only be operated by personnel with the required competence and training. The user manual states that the operator should receive machine operation training provided by the manufacturer and hold a driving licence that complies with the relevant regulations in the country of use.

Maintenance intervals vary according to the type of work. The user manual includes different engine maintenance intervals starting with 50-hour checks and continuing at 250, 500, 1,000, 1,500 and 3,000 operating hours. The current operation and maintenance manual supplied with the machine should be followed for maintenance work.

Yes. Maintenance, servicing and spare parts support for the BM700 are provided by the manufacturer. You can contact us for information about the service scope and support options available in your region.

The price of the BM700 may vary depending on the order scope, delivery location and any additional services requested. For current pricing and delivery information, please complete the quote form to contact our sales team.

The BM700 uses a belt-screen system that separates sand from foreign materials. The screen opening allows foreign materials above a certain size to be separated and transferred to the waste hopper as the sand passes through the screen. With a 12 mm screen spacing, both small and large foreign materials can be separated from the sand.

The BM700’s belt-screen system allows foreign materials measuring 12 mm and above to be separated from the sand and collected. This helps remove larger items such as stones, seashells and packaging waste, as well as smaller waste such as cigarette butts, from the beach surface.

Yes. The BM700 is designed to separate cigarette butts from other foreign materials in the sand and collect them in the waste hopper. The belt-screen system screens the sand and returns it to the beach surface while separating cigarette butts and similar foreign materials from the sand.

No. The BM700 is designed to operate on dry sandy surfaces. Wet or damp sand may prevent the screening system from working efficiently, so use on these surfaces is not recommended.

No. The BM700 is not suitable for cleaning wet seaweed. Wet seaweed can create excess build-up on the sand and screening system and may reduce the machine’s operating performance. The BM700 should mainly be used to separate foreign materials and suitable dry seaweed from dry sand.
